| Brand Name : | REACH |
| Model Number : | QDD20E |
| Certification : | CE, TUV |
| Price : | USD 4670 per set |
| Payment Terms : | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability : | 500 sets per month |
| Delivery Time : | 25 - 30 days |
Advantages:
| SPECIFICATIONS | ||
| Model | QDD20E (AC) | |
| Drive type | battery | |
| Load capacity | kg | 2000 |
| Drawbar center height | mm | 280/350 |
| Axle loading, front | kg | 300 |
| Axle loading, rear | kg | 440 |
| Tyre size, front | solid rubber | 15*4½-8 |
| Tyre size, rear | solid rubber | 15*4½-8 |
| Rear hanging distance | mm | 295 |
| Seat height | mm | 910 |
| Overall length | mm | 1720 |
| Overall width | mm | 968 |
| Overall height | mm | 1270 |
| Min. ground height | mm | 90 |
| Min. turning radius | mm | 1500 |
| Travel speed, laden/unladen | km/h | 7/10 |
| Max. gradeability, laden/unladen | 7/12 | |
| Battery | V/Ah | 36/200 |
| Traction bolt | Traction bolt | |
| Service weight | kg | 740 |

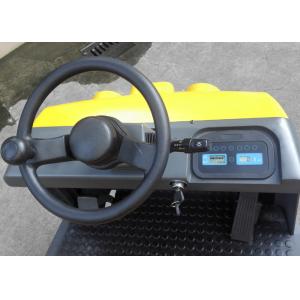

Adjustable steering column with electric Large capacity batteries located in the
F/R lever lowest part of frame, offers low centre
of gravity.



|
